The Gravity Harps are the result of a year-long collaboration between Björk and me. Björk's Biophilia project integrated forces various forces of nature into the instruments. The Gravity Harps created music with gravity.

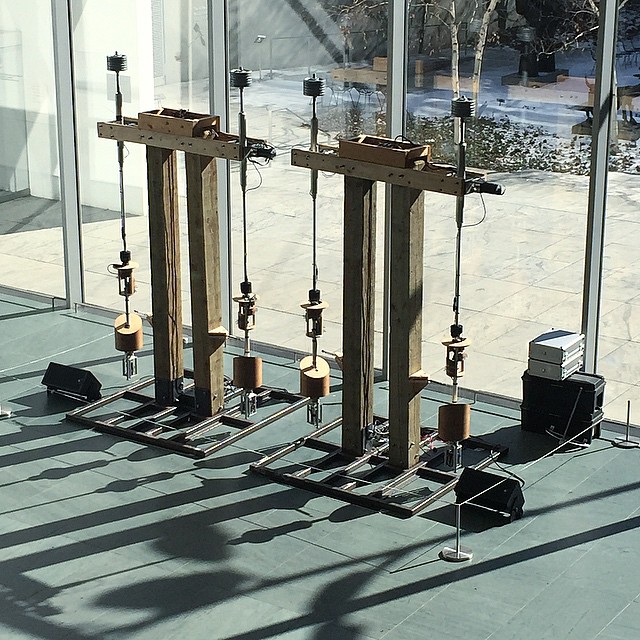

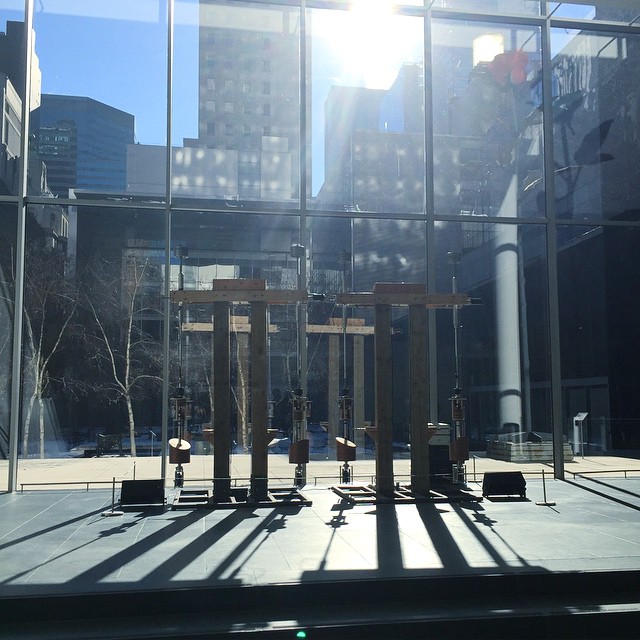

Here they are in the Gund Lobby at MoMA.

With Björk in Paris
With Björk in Paris
At MoMA
At MoMA
With Björk in Manchester
With Björk in Manchester

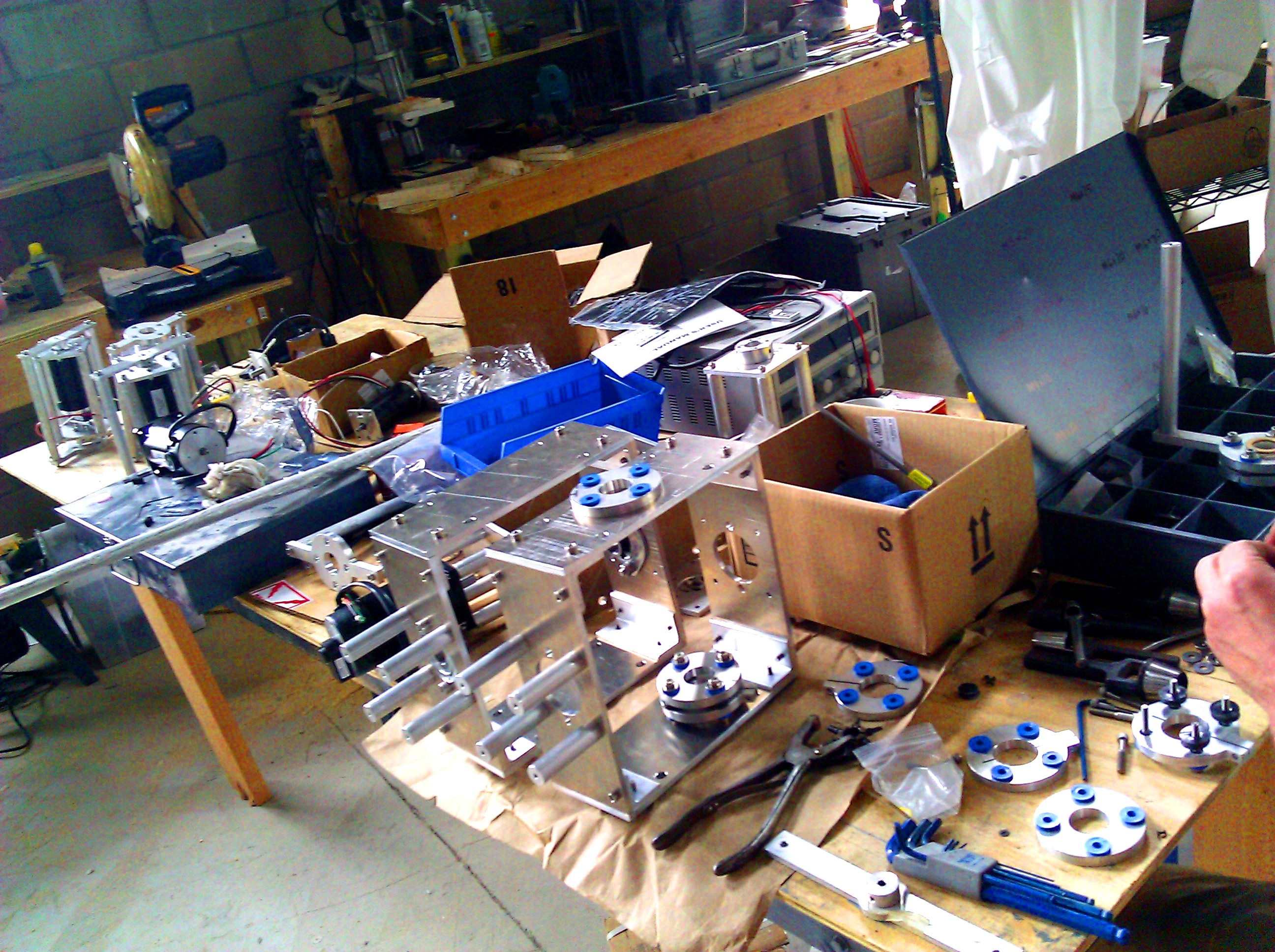

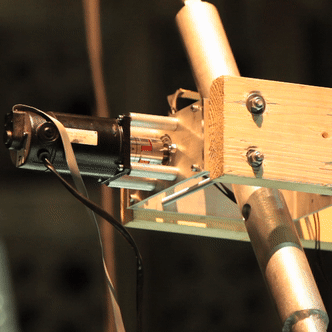

Mechanical Details
Mechanical Details

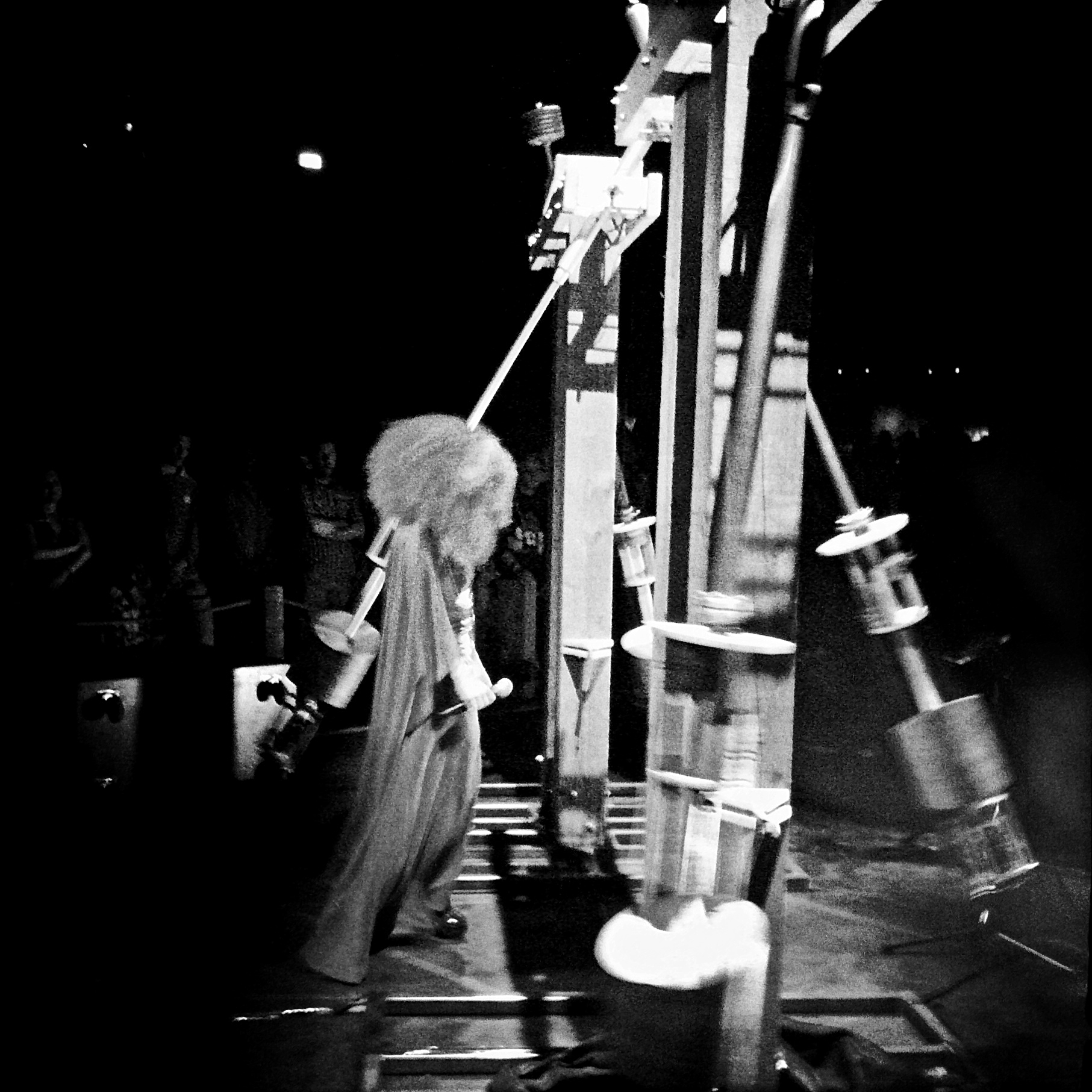

Live with Björk

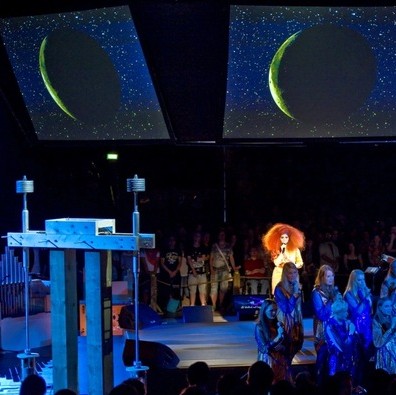

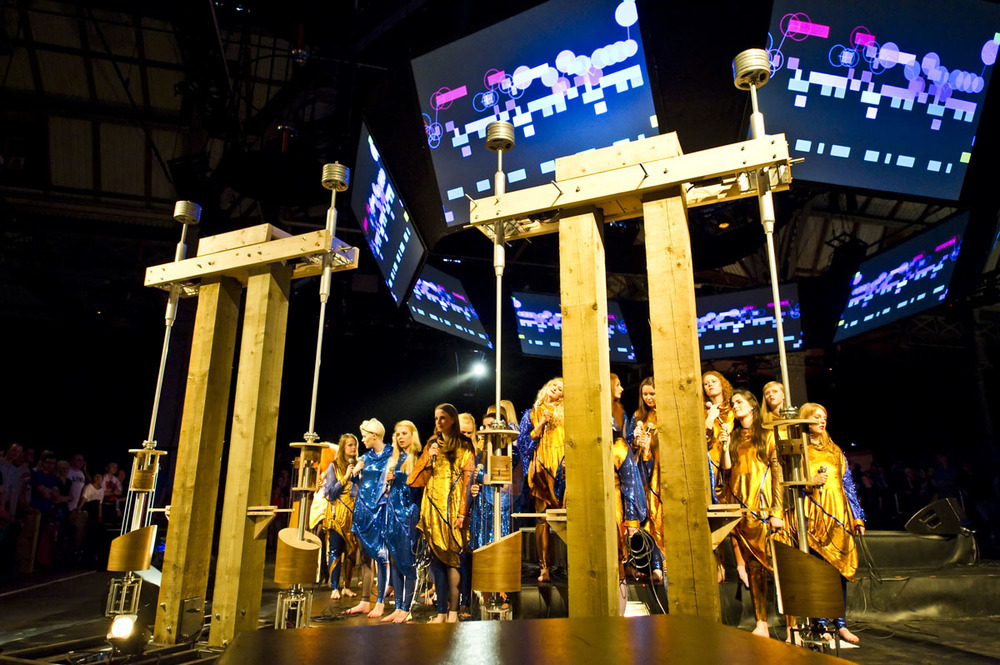

At the end of every show on the Biophilia tour, Björk sang accompanied by only the Gravity Harps.

And for the first year, I was right beside both of them offstage, anxiously operating the instrument.









Early Concepts leading to the Gravity Harps

Pendulum Concept




At the beginning of the process, I produced and documented concepts in Boston and sent them to Björk in Reykjavík. Here's the video with the early pendulum concept.

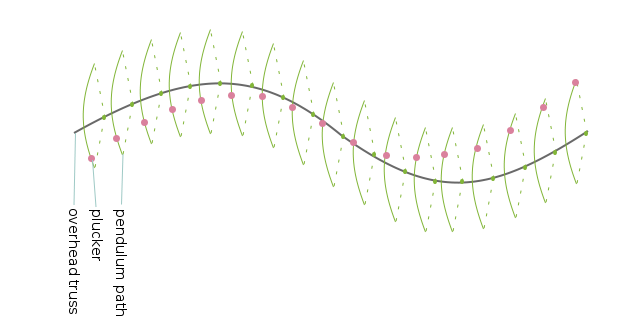

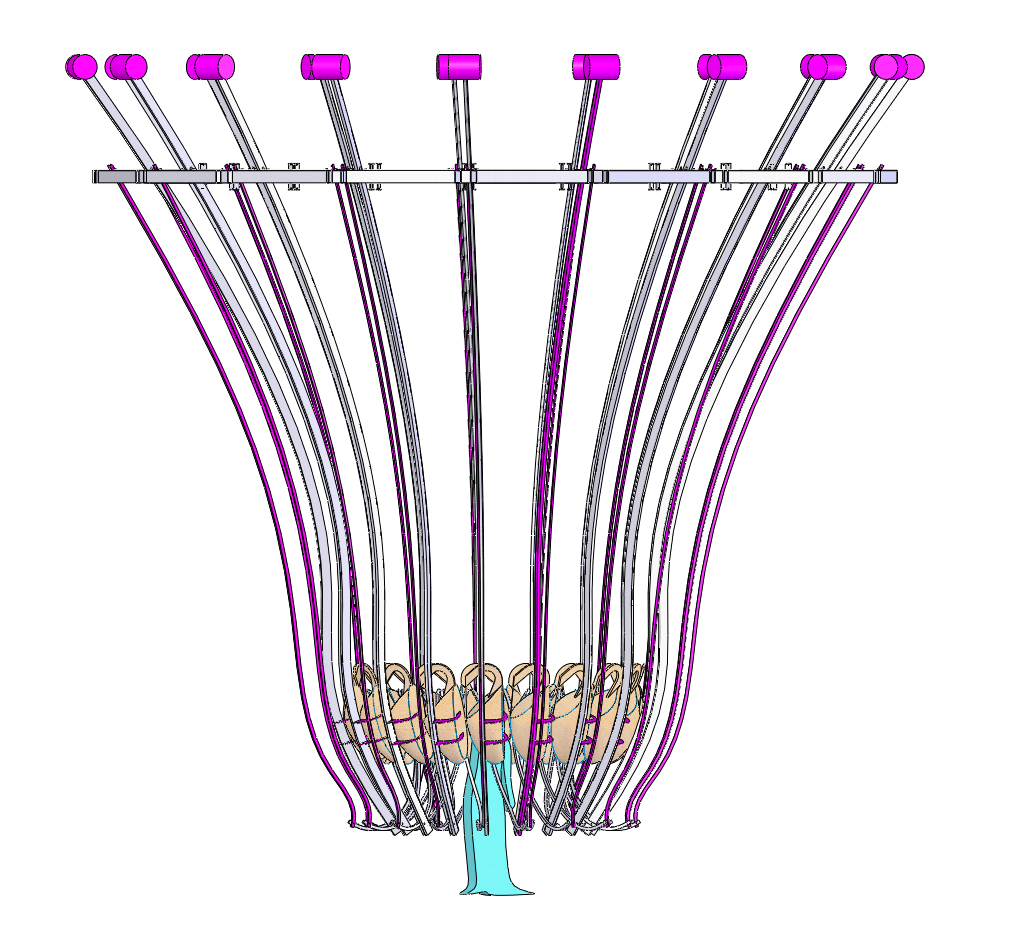

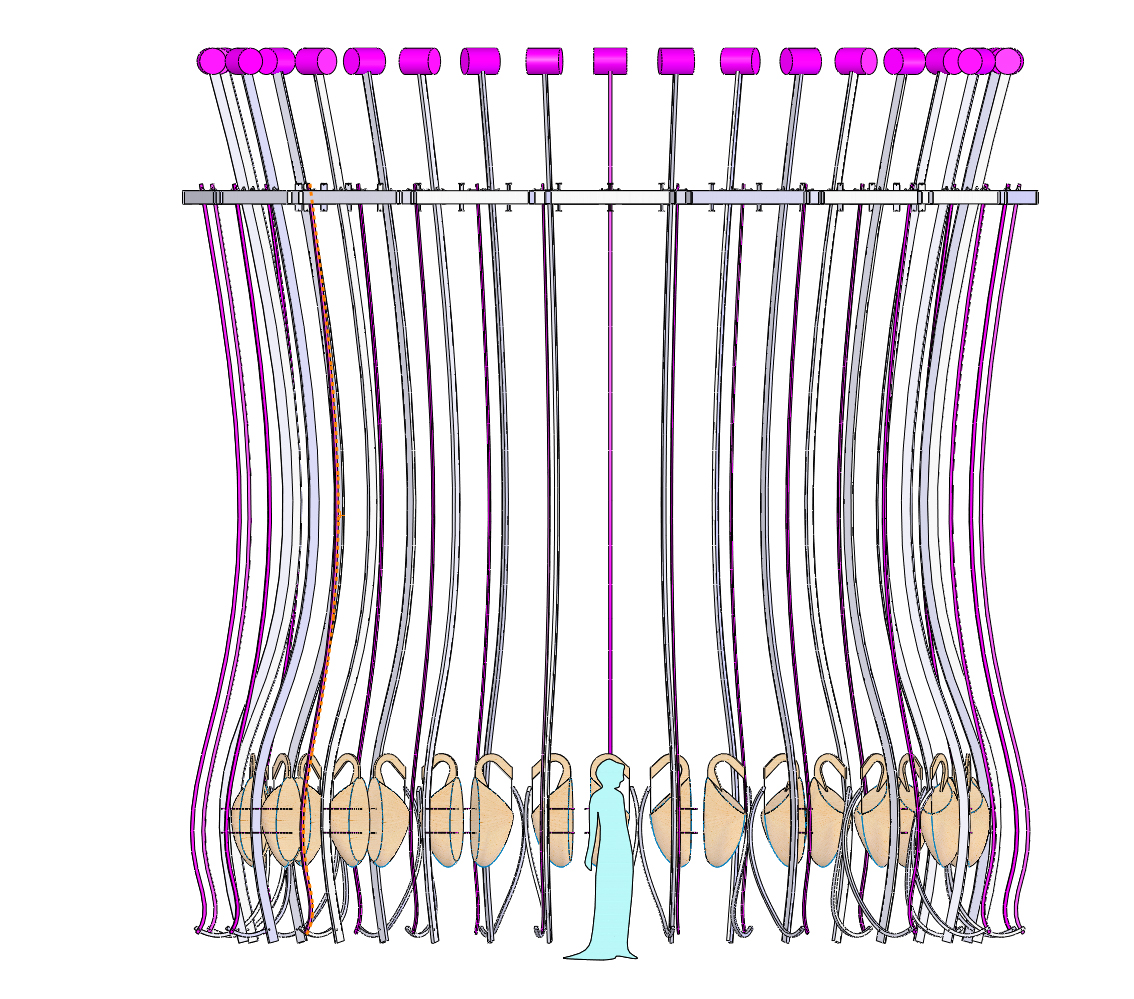

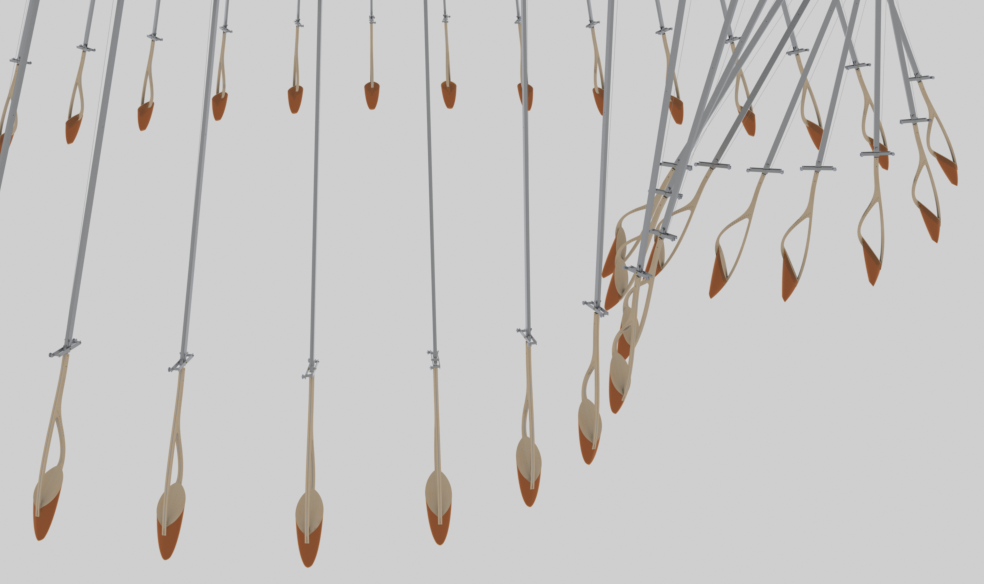

Below are ideas for shapes for the many pendulums.

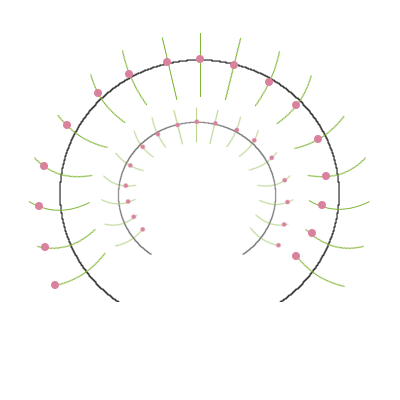

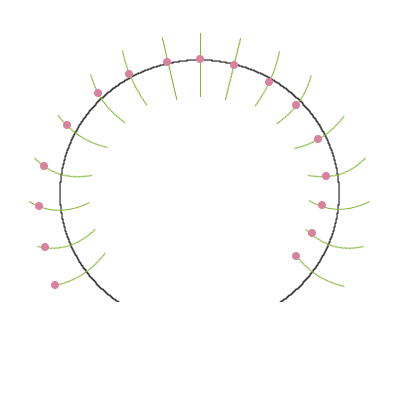

pendulum layouts
pendulum layouts


pendulum layouts








The Water Harp

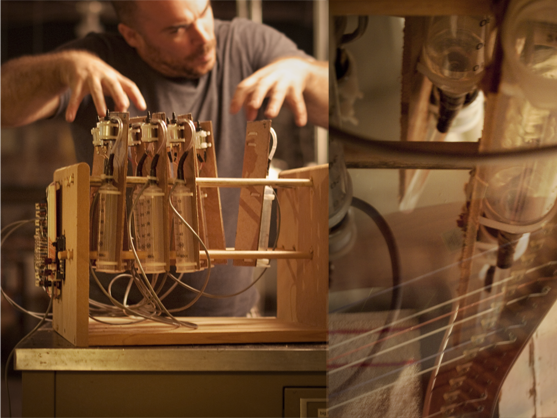

I designed a lot of other concepts for the Biophilia project in this period. This one uses water droplets on harp strings to play her new song Moon.

This prototype convinced me that it was nearly impossible.

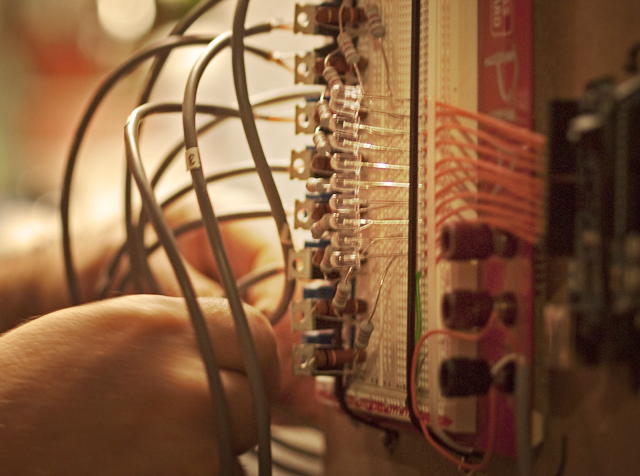

wiring the prototype
wiring the prototype

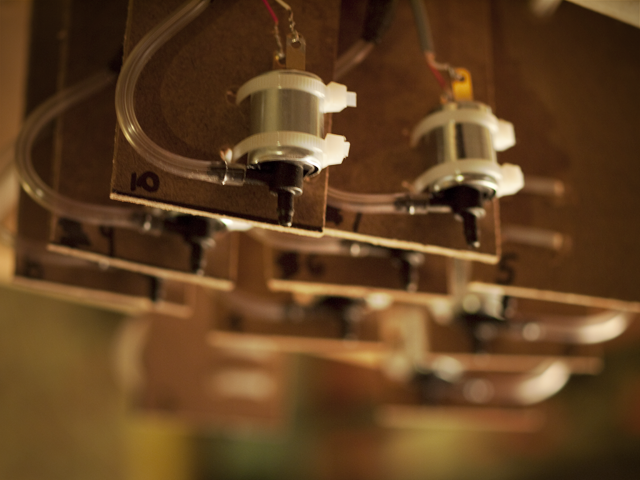

Nozzle Excitement
Nozzle Excitement
Adjusting the Gantry
Adjusting the Gantry








The Marinas


The Gravity Harps are a direct descendant of this pendulum-harp system made with much help from collaborator Marina Porter.

These were hypnotic like a fireplace. Everybody in the room would stop talking and quietly watch and listen.

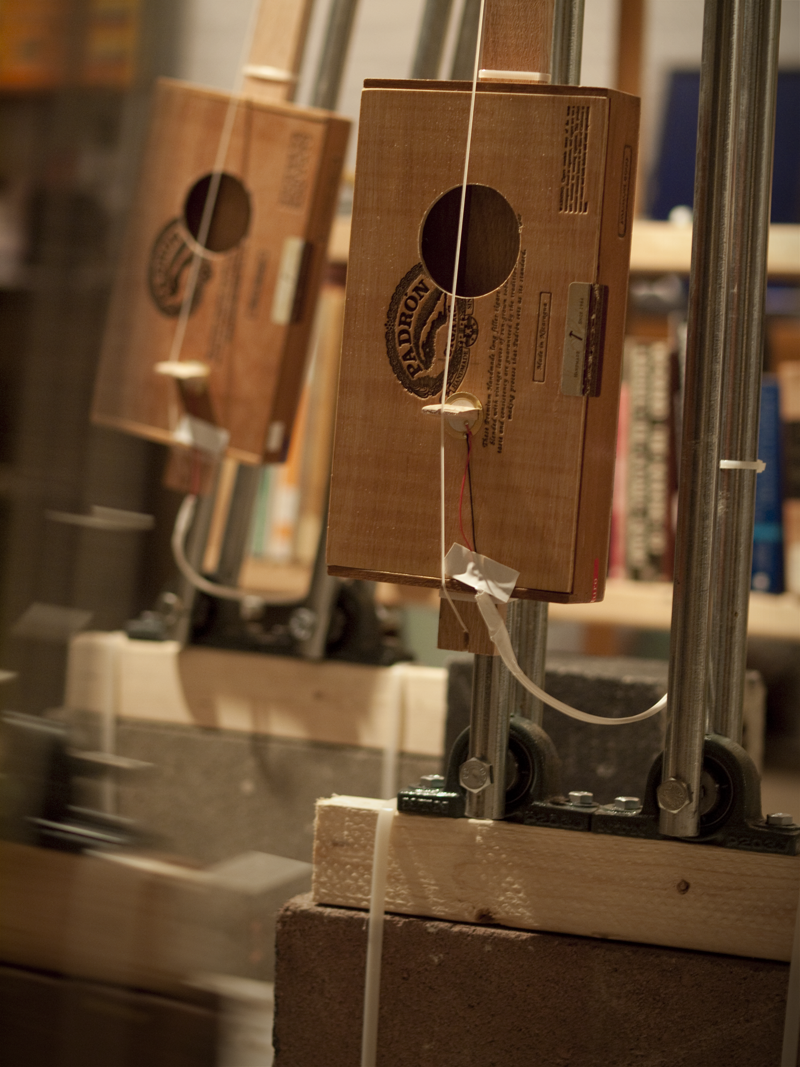

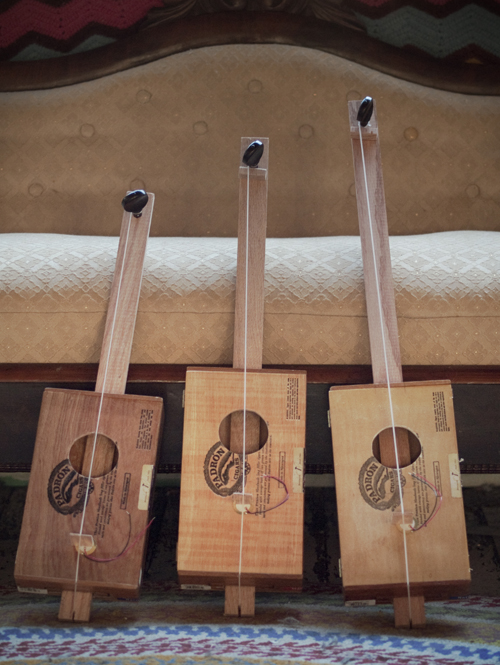

cigar-box unicords
cigar-box unicords

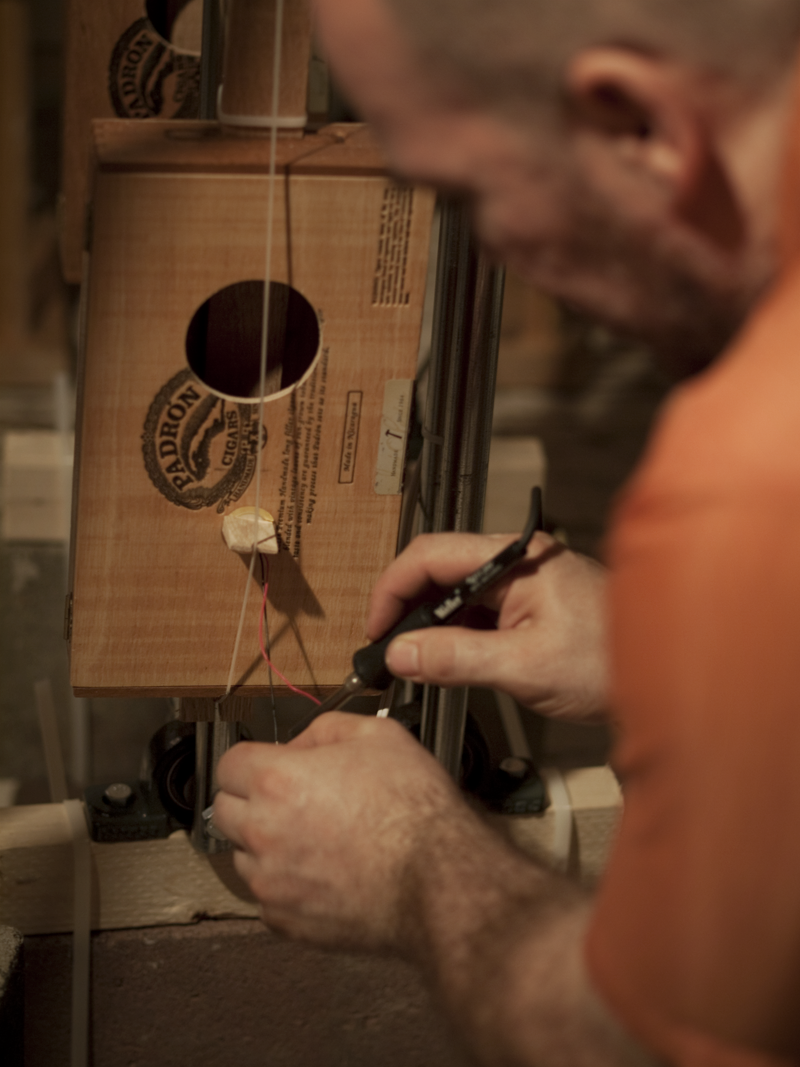

soldering pickups
soldering pickups
motion tests
motion tests








Ripple Music


I liked the idea of creating music with ripples and their interactions. Arrays of optical sensors or a video camera would detect ripples and send the data to musical software. I would like to revisit this potential in a future project.









The Weavers


One walking machine weaves a musical fabric. The other plays it mechanically like a music box and unweaves it on spools. The two machines wander around with this tension of time and music between them.

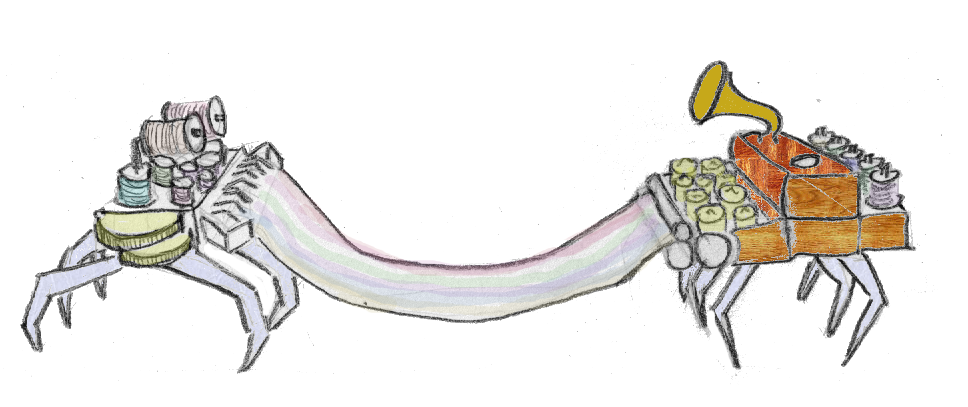

Weavers








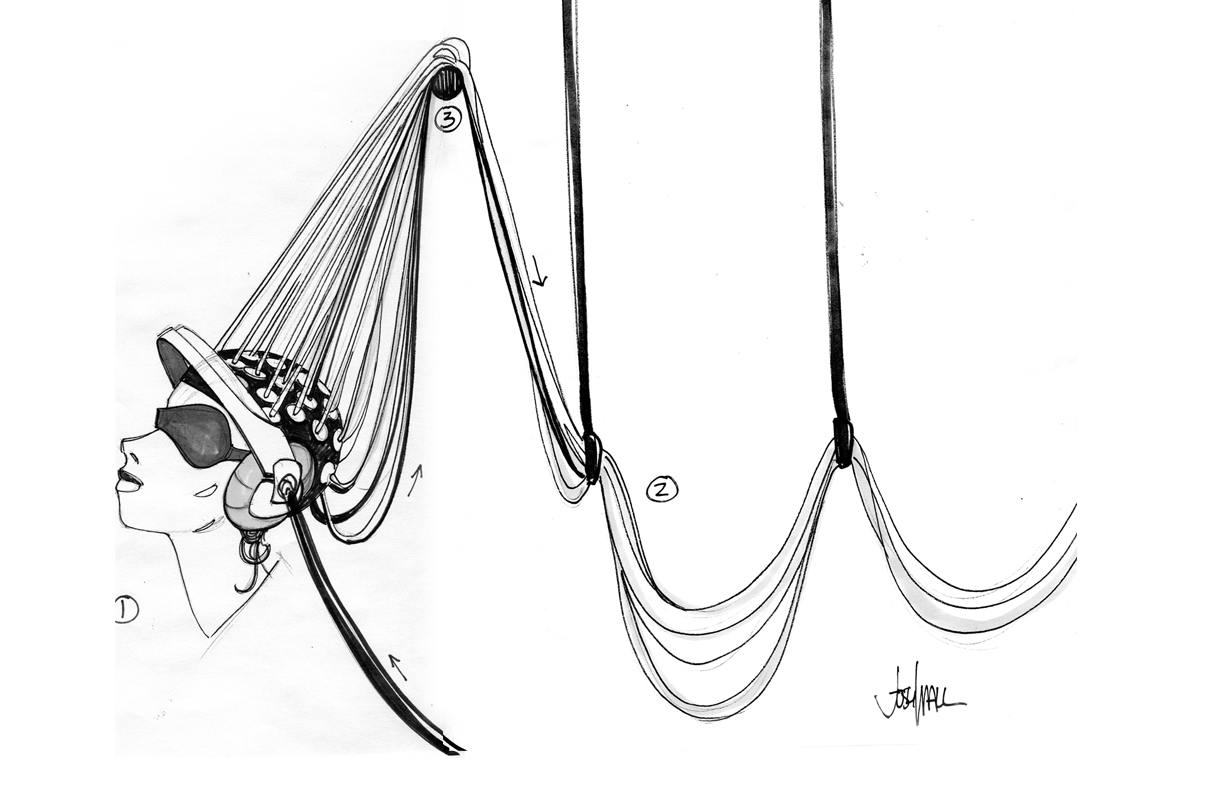

electrodes
The Inner


An AI creates streams of original music and uses the emotional responses of a human listener for training and feedback. It's an intelligent machine that requires a human mind as one of its components. It's also a collaboration that requires no volition on the part of the human — just listen and feel.

The system should learn to create optimal music for each person that is completey unique. And these optima may reflect and reveal essential aspects of the listener. It could even have therapeutic use in the diagnosis or classification of brain conditions.

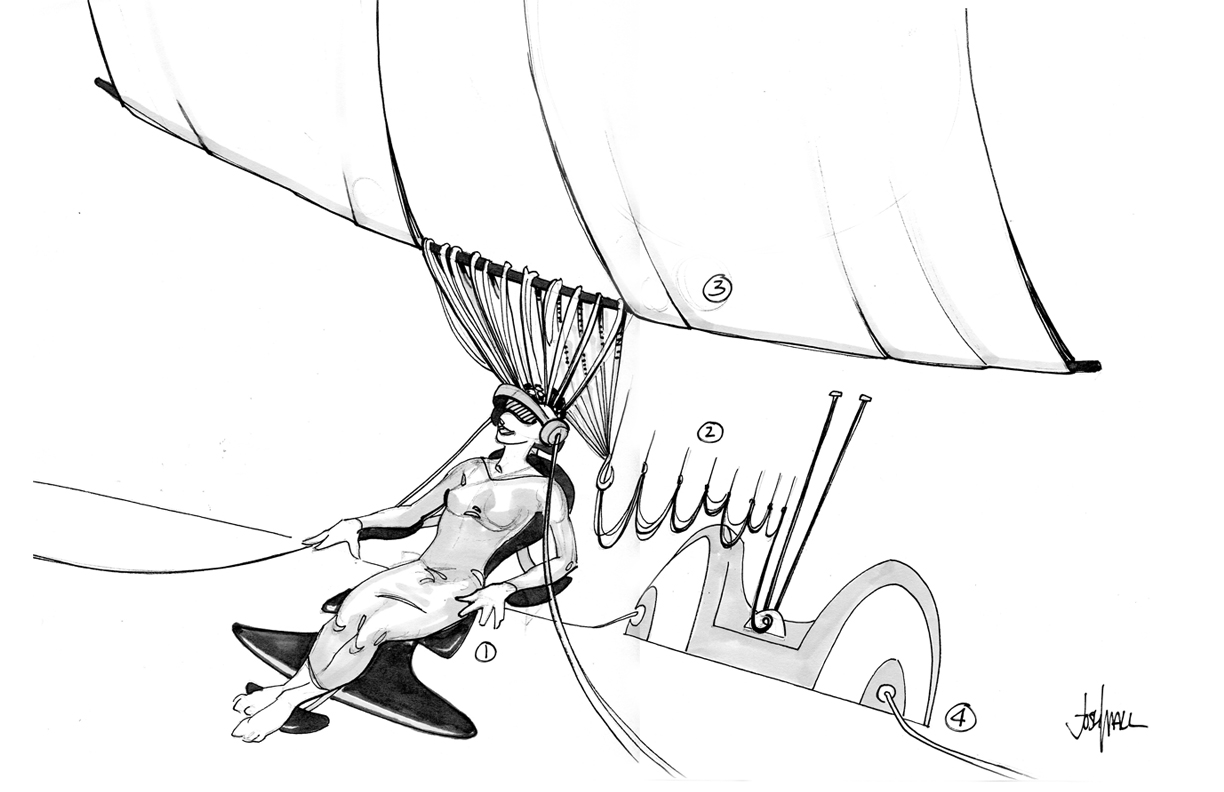

electrodes

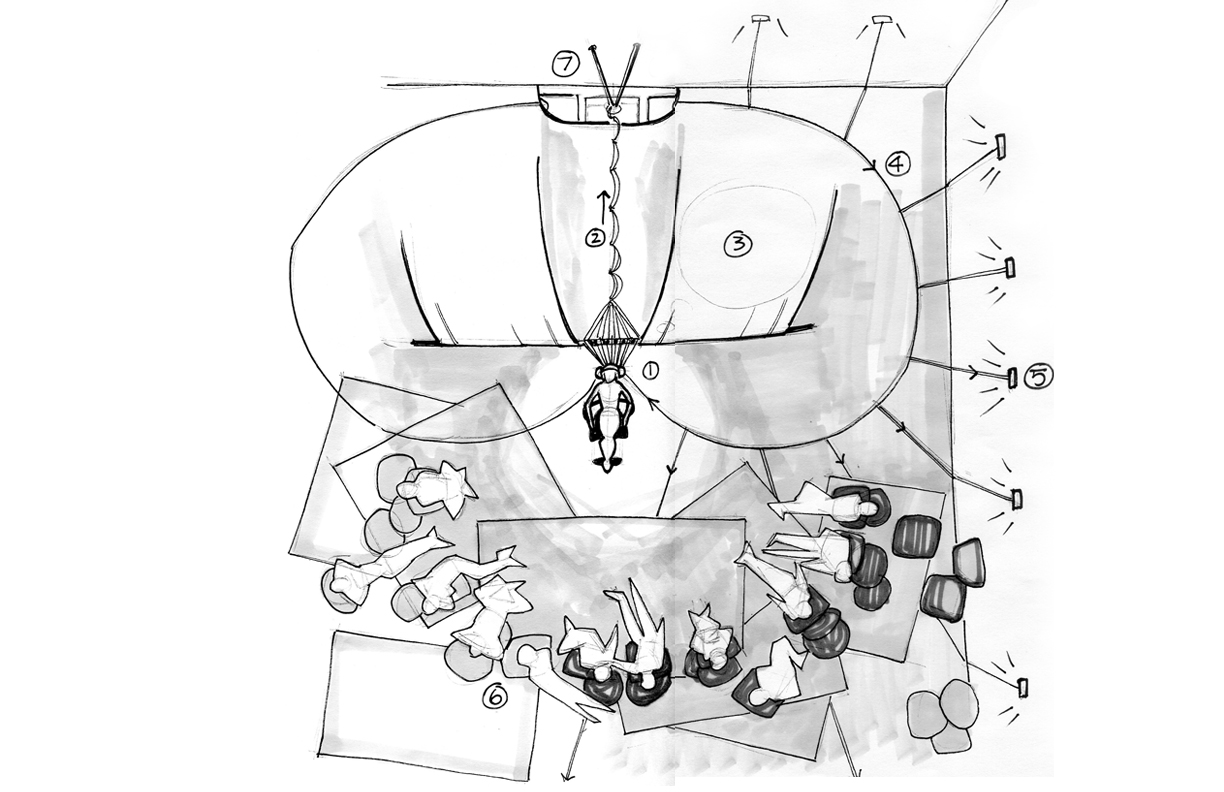

electrodes








Universal Keyboard


huygens-fokker

These early explorations foretold a musical world that could not be expressed with a typical keyboard.

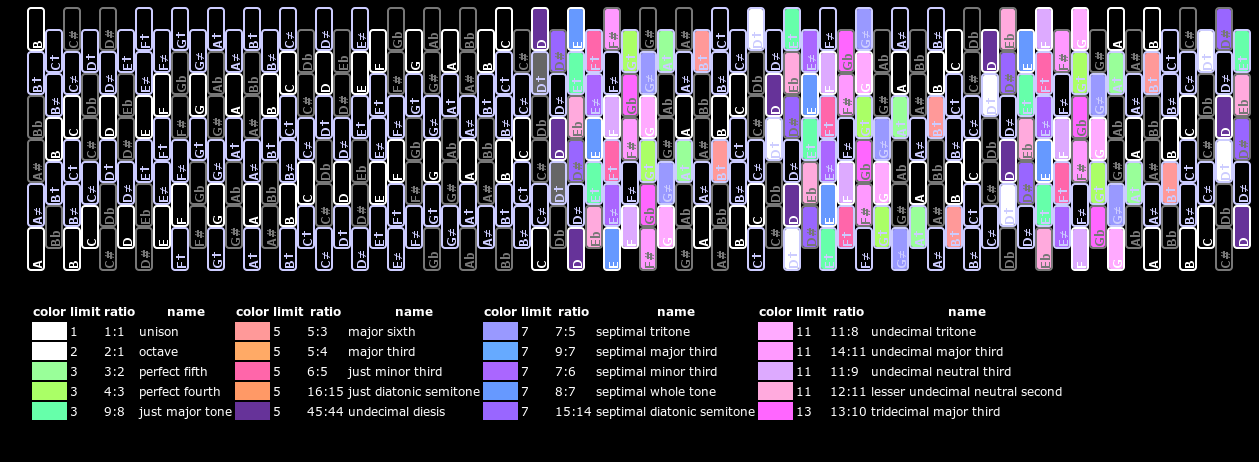

I designed several new universal keyboards inspired by the work of Bosanquet and Fokker(above). These new keyboards included not just pitches but timbres and an exotic musical pantheon of intervals and harmonies. I will make time to share the digital versions of these if enough people ask.

bosanquet
interval keyboard








The Timbre Box



When Björk told me that she wanted embed a gamelan in a keyboard instrument, I got very excited. I designed a number of physical keyboard instruments that held the variety of instruments from a Balinese gamelan. Gangsas, barungs, trompongs, sarons, demuns, slentems. It was a little nuts.

Björk soon told me that her plans were much more modest and less full of cultural appropriation. But not before I created two 2010-style, iPad-ready mockups that put that wie variety of timbres at a player's fingertips.

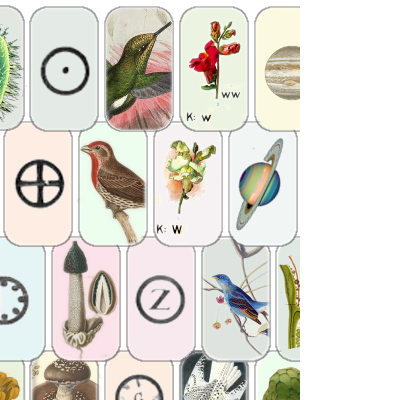

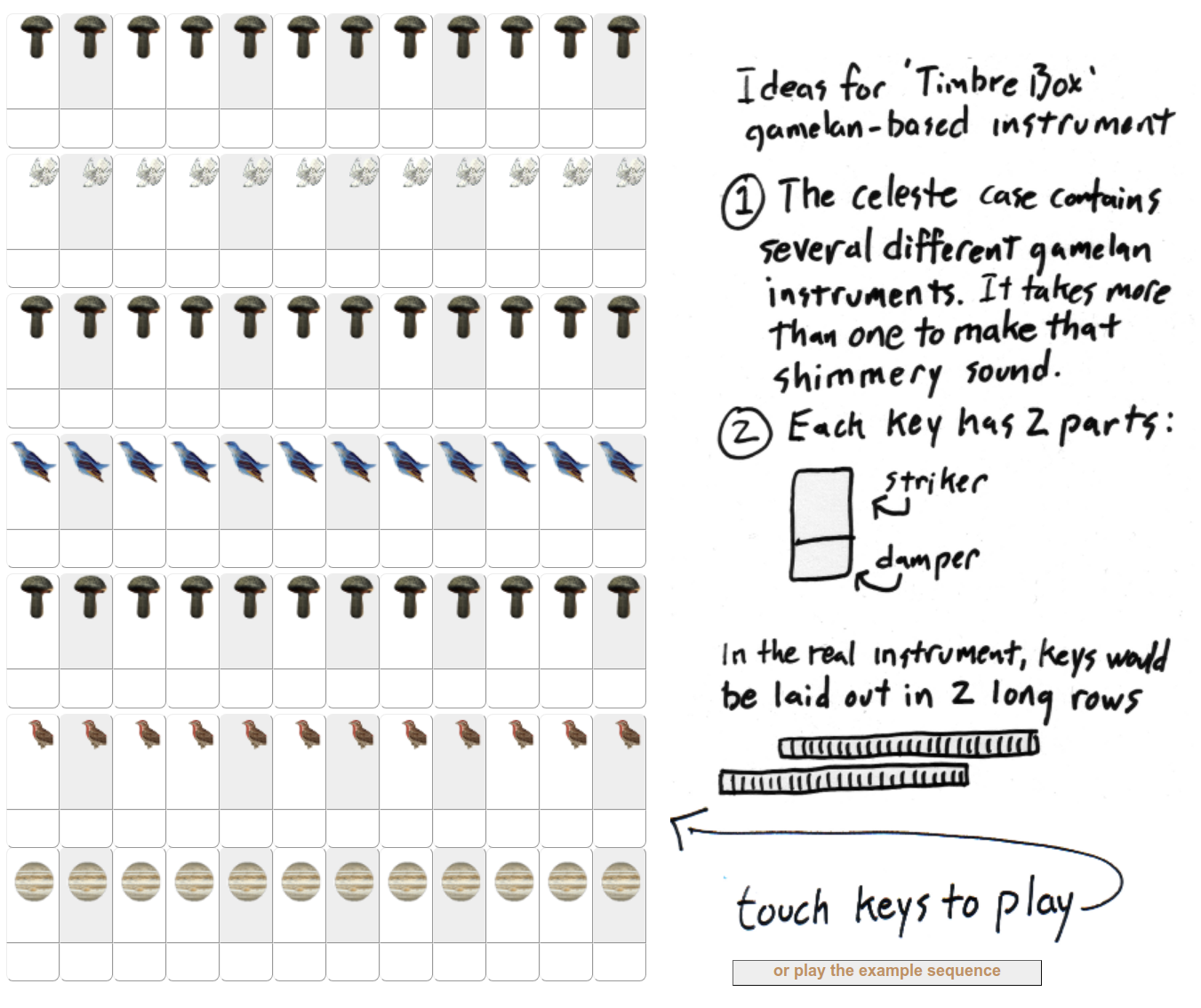

Click the image on the right for a chromatically-tuned version.

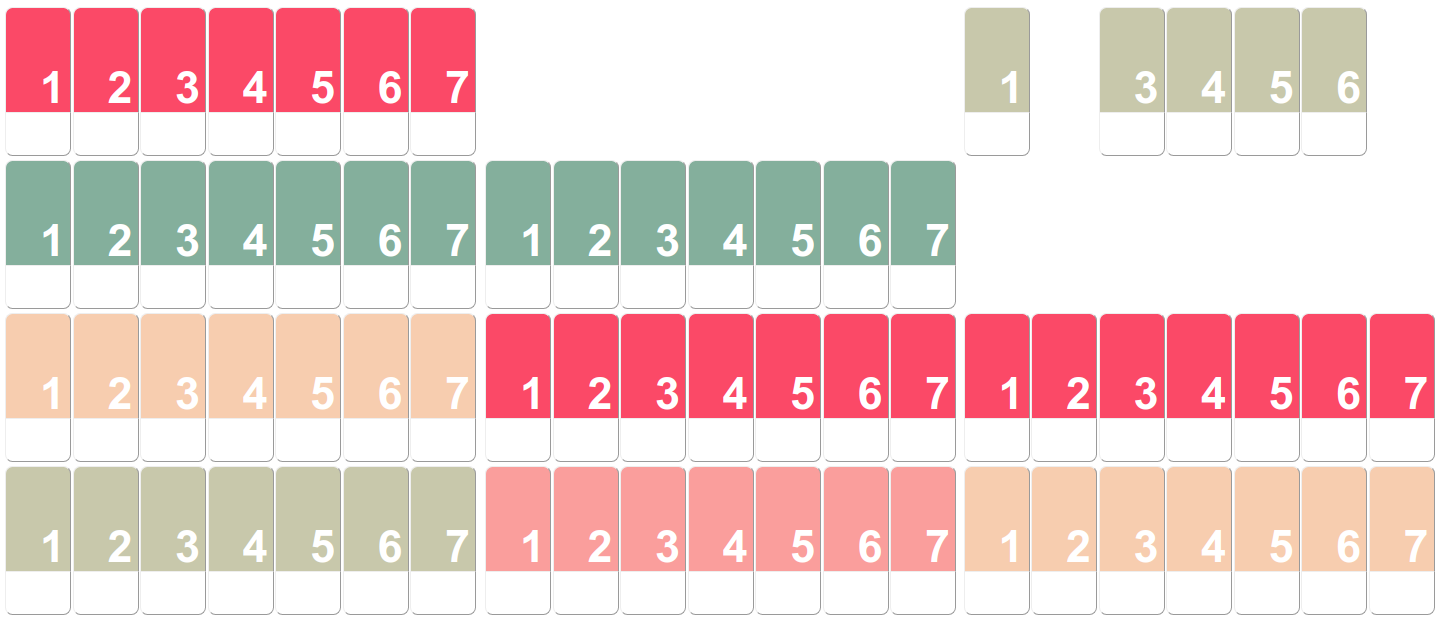

Click the image on the below for a version tuned in Balinese pelog tuning.

They need a few seconds to load fully.

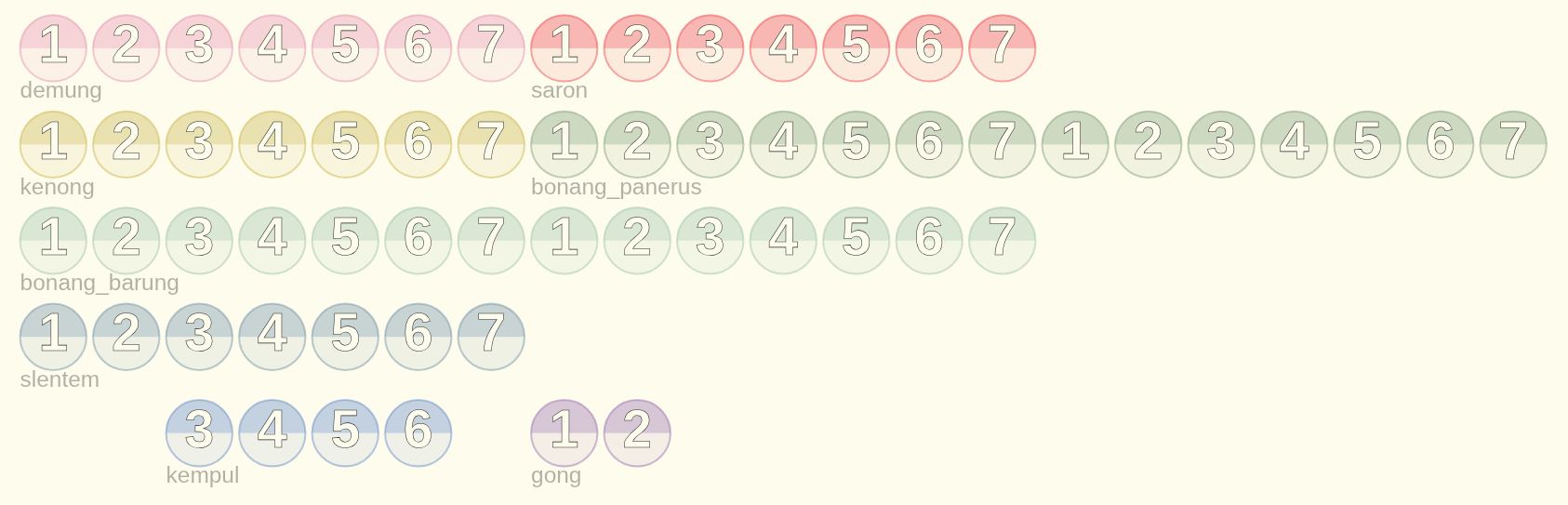

Chromatic Timbre Box


Pelog Timbre Box








The Pendulum Ring

Pendulum Ring Concept

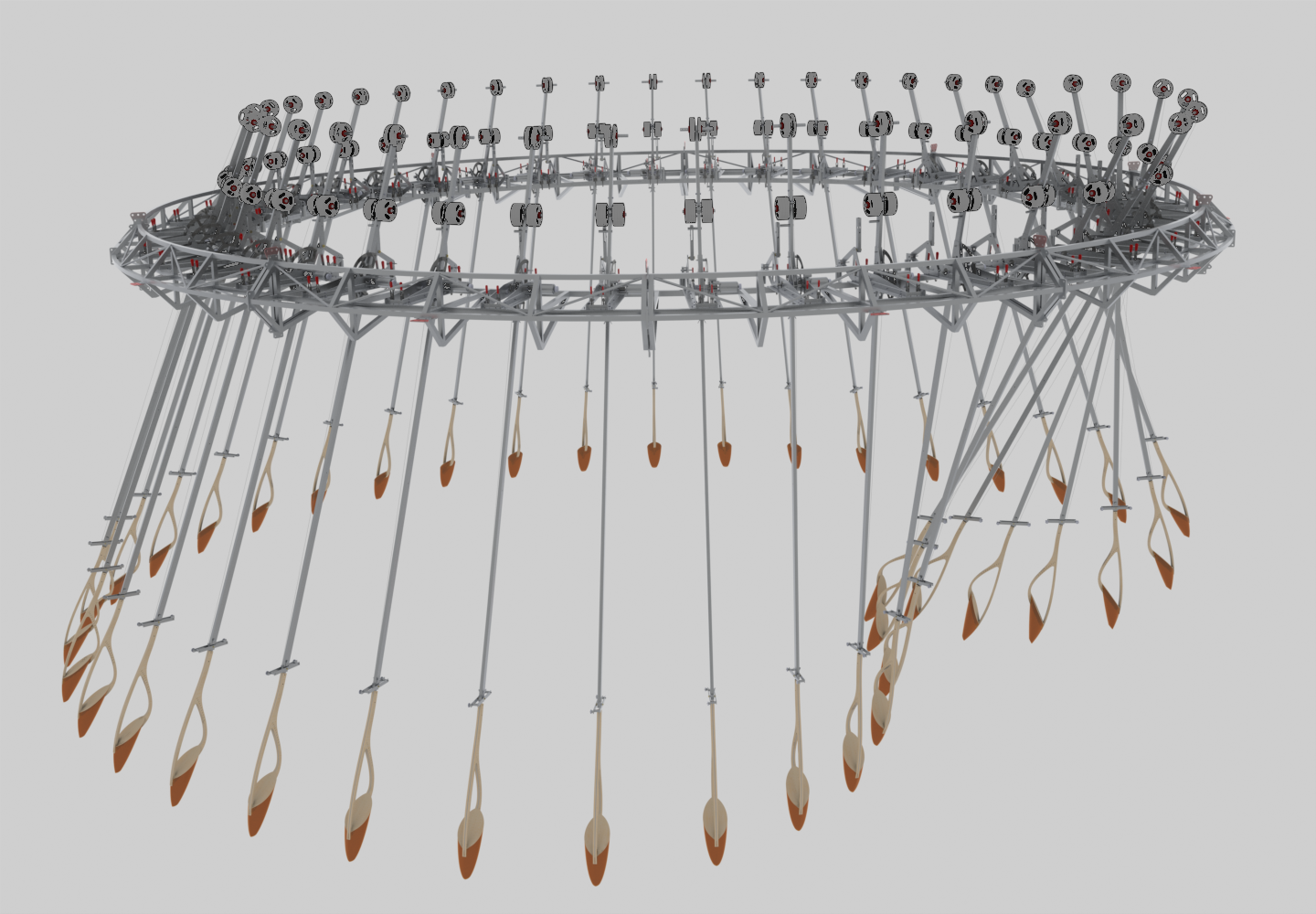

Before the Gravity Harps, we started building a much larger instrument for one-time use in a Biophilia film with Björk. This enormous instrument featured 38 pendulum-harps between two and five stories tall. We all loved imagining how beautiful it would be.

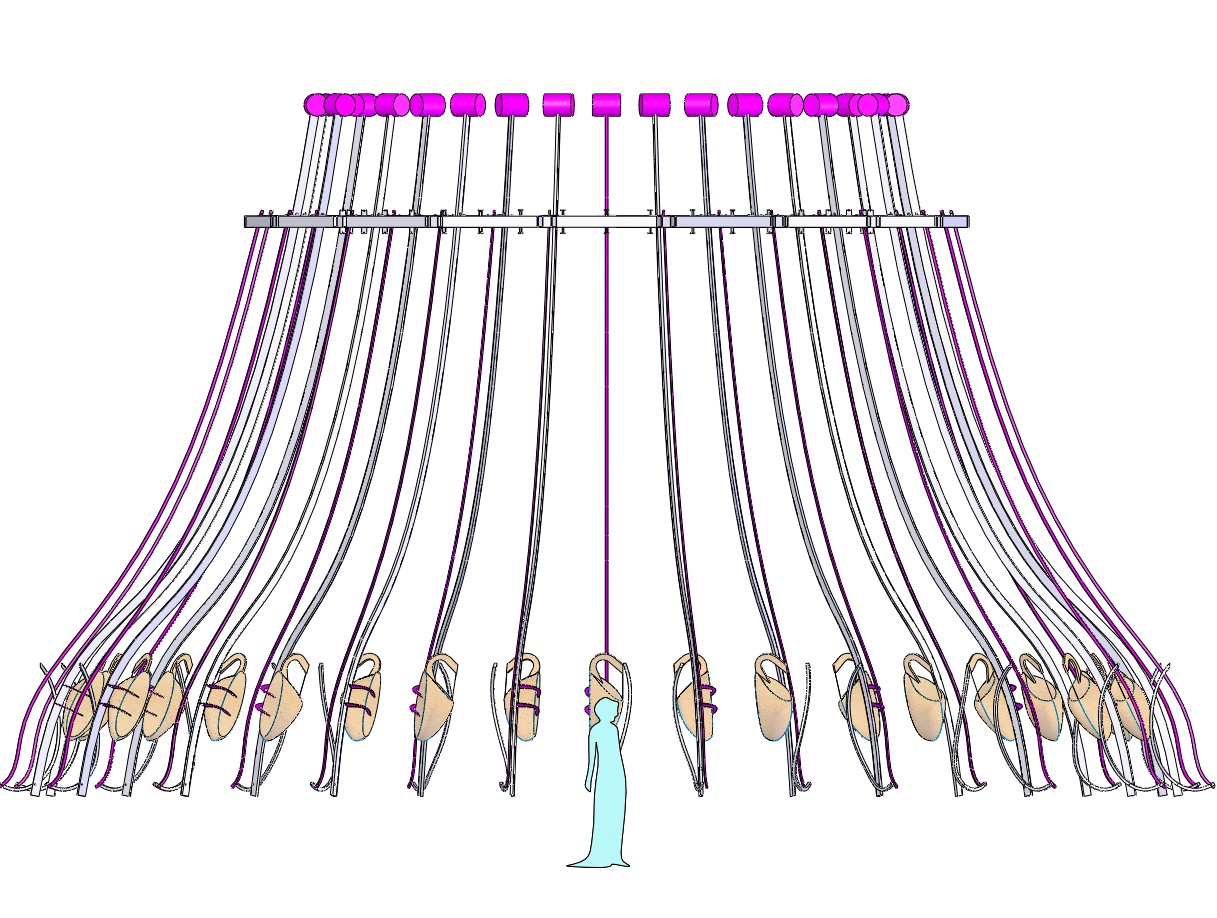

Wide




pendulumring
Free


pendulumring
Narrow


pendulumring
Studio Placement


pendulumring








Motion System Prototype




We were designing and prototyping The Pendulum Ring around the clock — creating the harps, the mechanisms, the software, the sound.

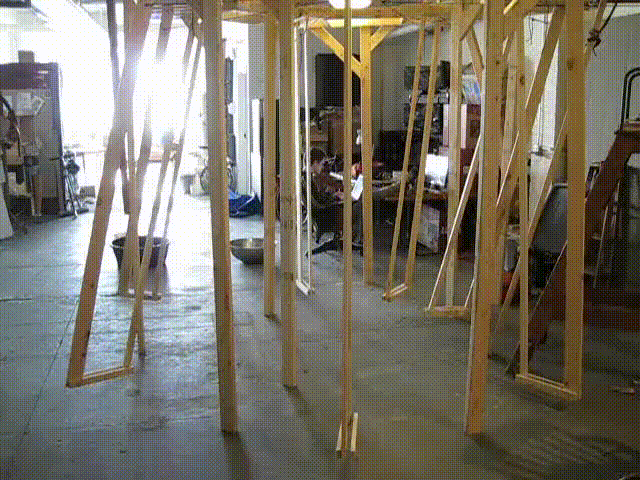

Our friends at Hypersonic.cc created our first tests of a motion system. It taught us that there will be no way to fake the freely swinging motion. Even when the math looks perfect, the eye can tell if it's not.

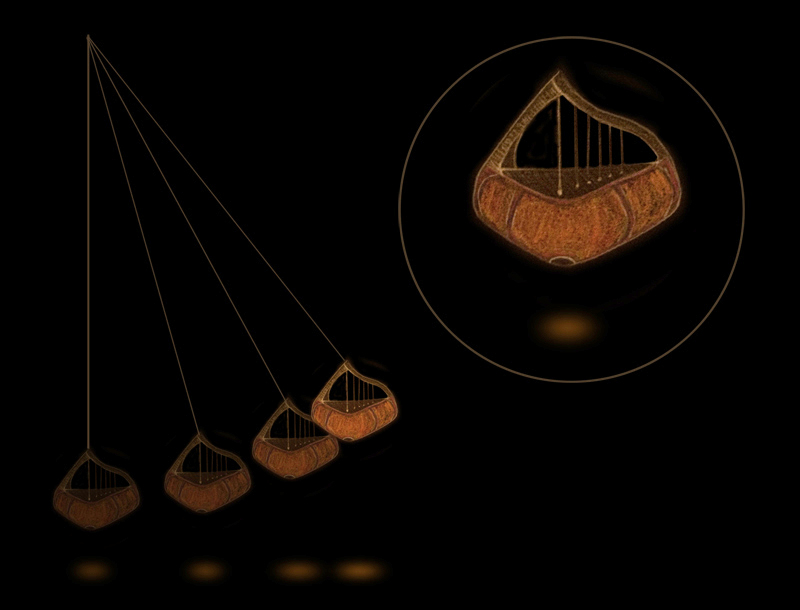

Lantern Harp


Lantern Harp

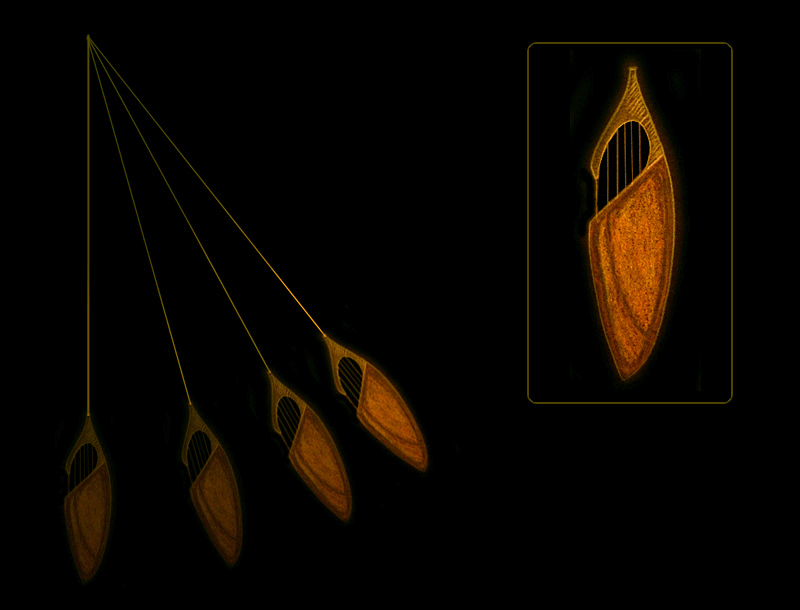

Jellyfish Harp


Jellyfish Harp
Harps Proto




Harps Proto
Harp Proto




Harp Proto








Simulations




All of these processes resulted in so many more collateral works than I have room to share. Fully functioning harps. Three-story-high pendulums. And so many types of simulations.

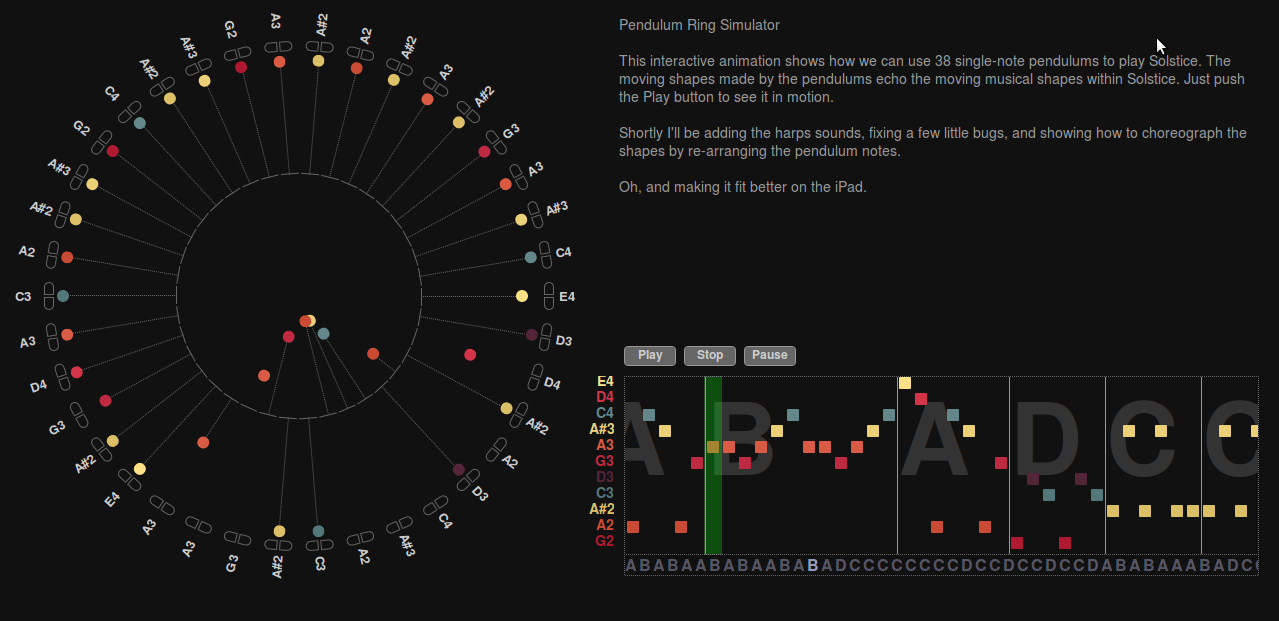

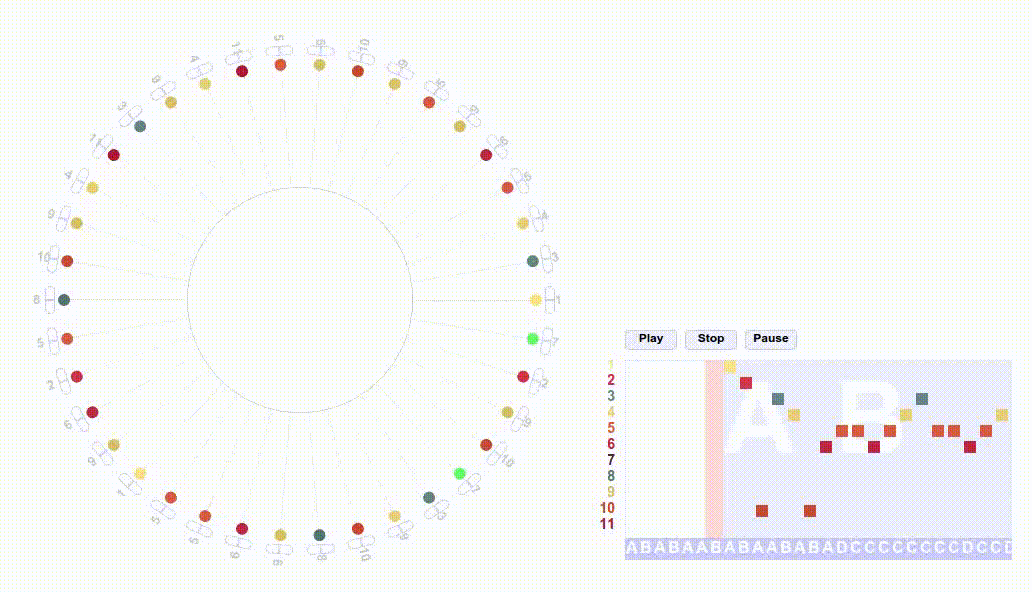

The video to the left shows custom simulation software used to choreograph the pendulums to play the music.

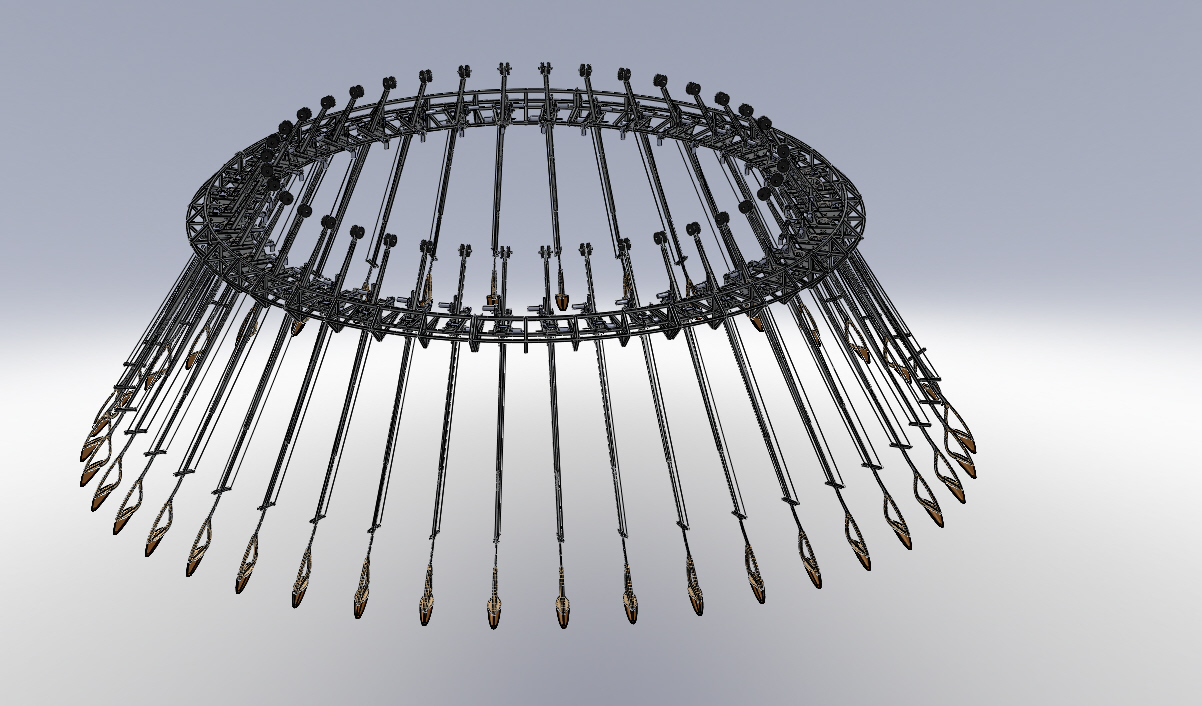

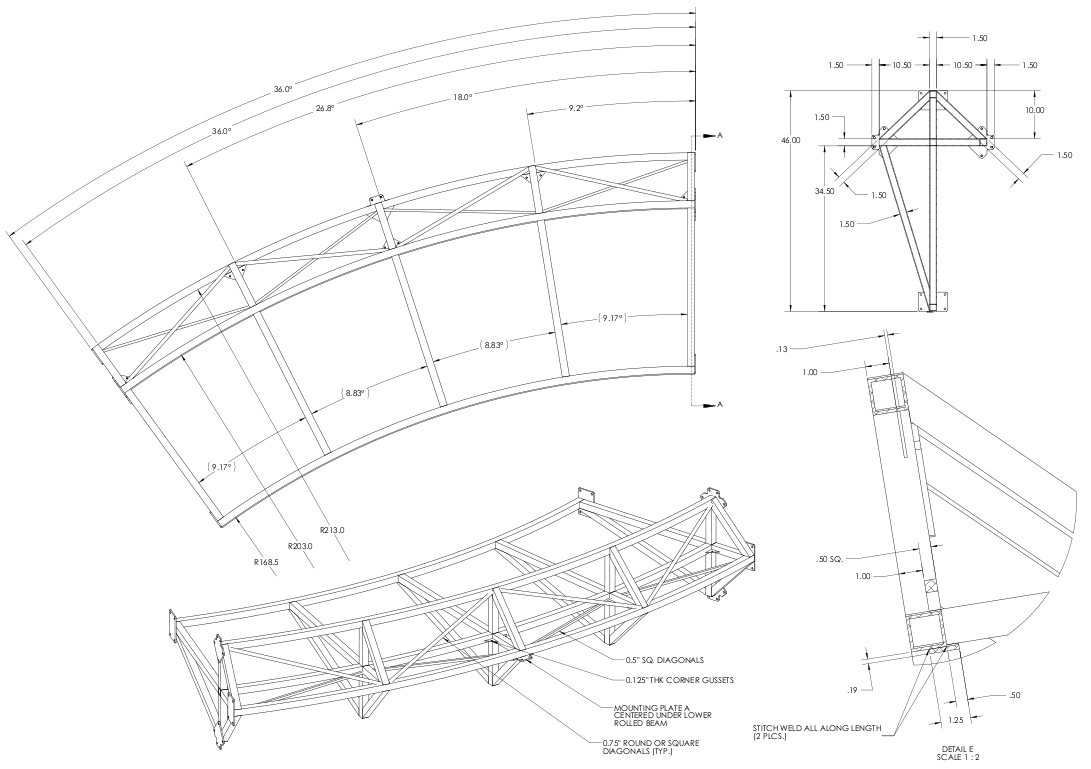

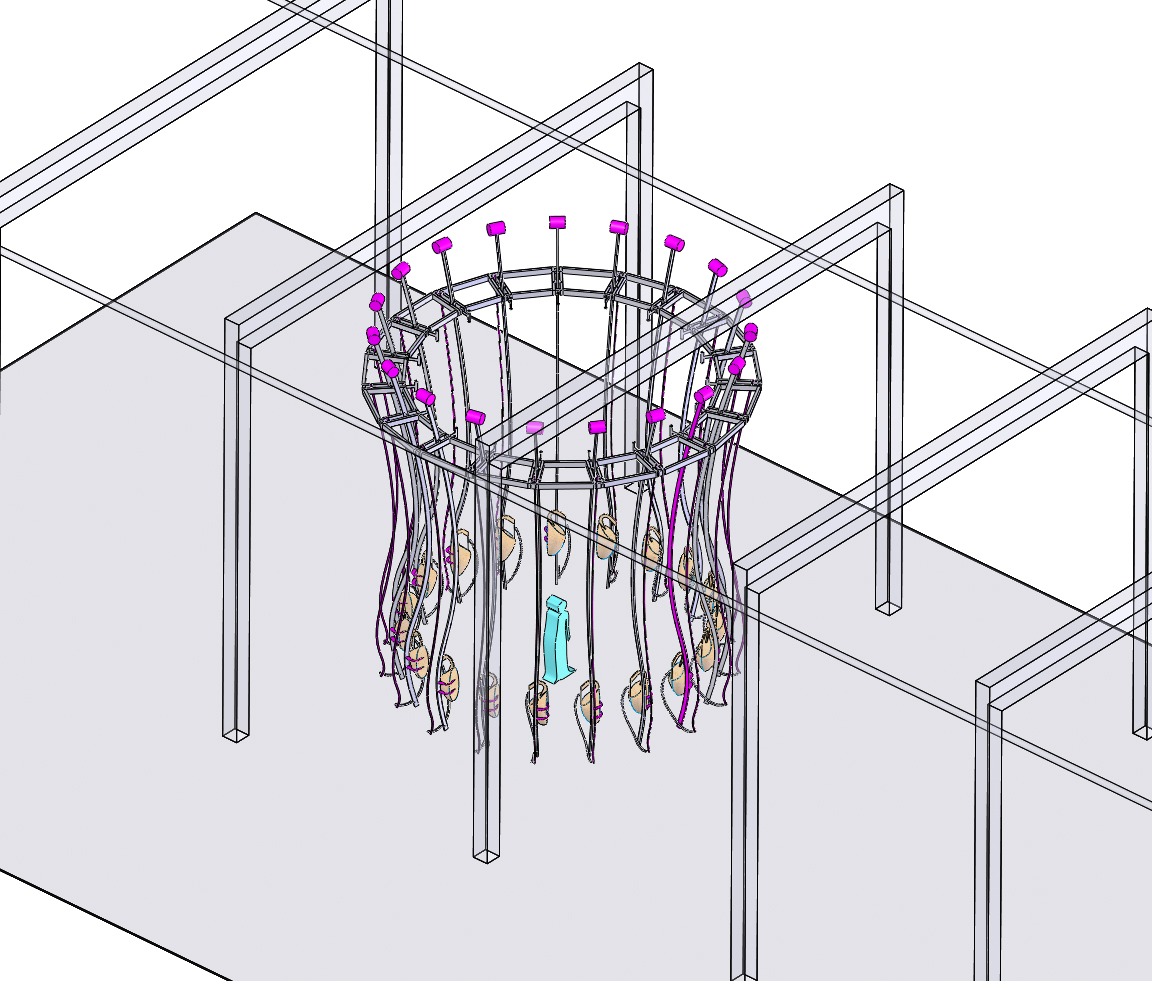

CAD model of ring


CAD model of ring
Motion Details


Motion Details
The Curve


The Curve
Mechanicals


Mechanicals








Gravity Harps Production

The Gravity Harps




When we got the word that the Pendulum Ring would have to go on tour, we all started having nightmares. To make this beast robust and easy to dis/assemble required a complete redesign, reengineering, and new prototypes.

In a long lunch meeting with Björk, we designed a much smaller and simpler instrument.



Four Swingers


Four Swingers
New Harp Design


New Harp Design

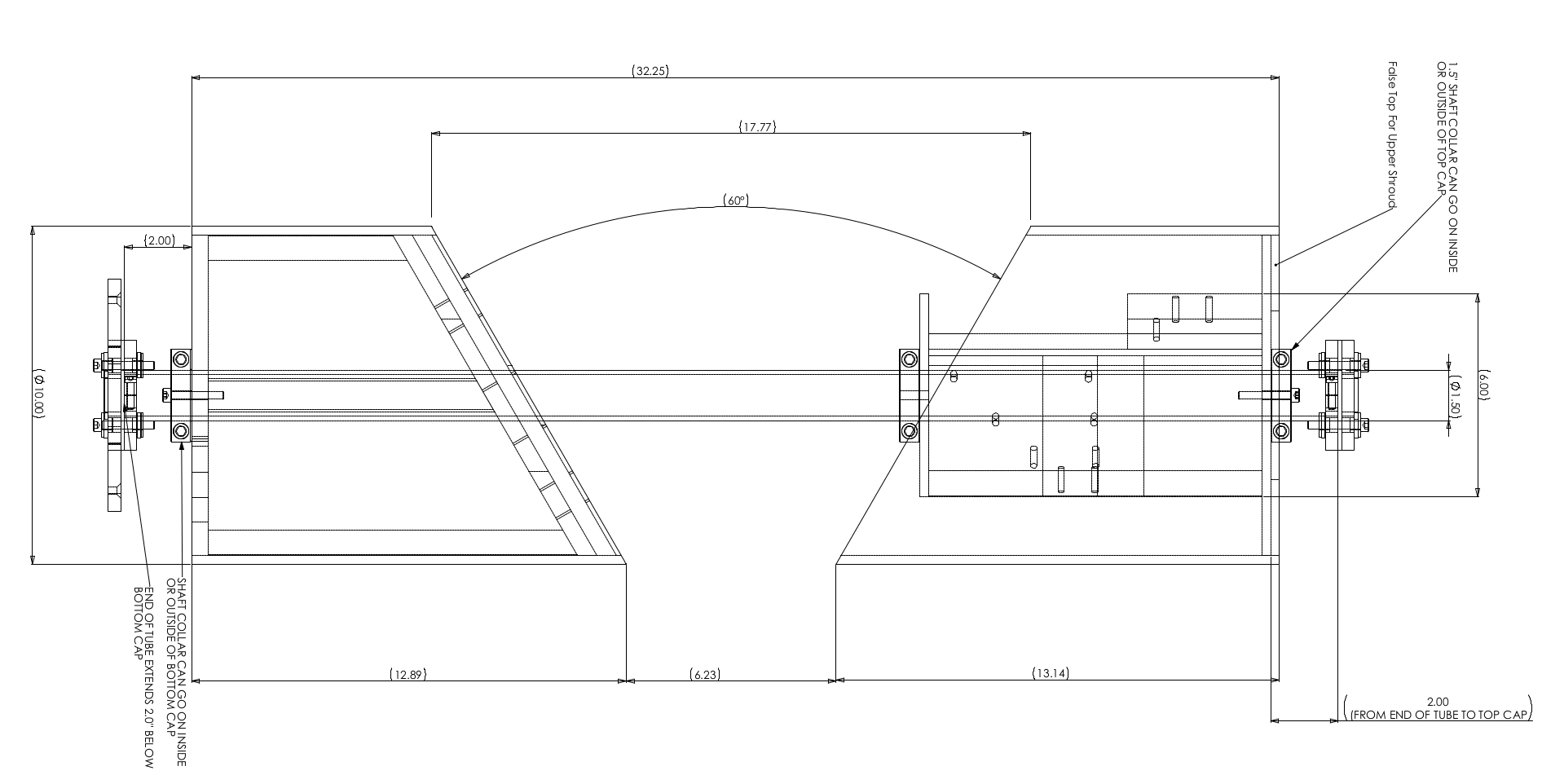

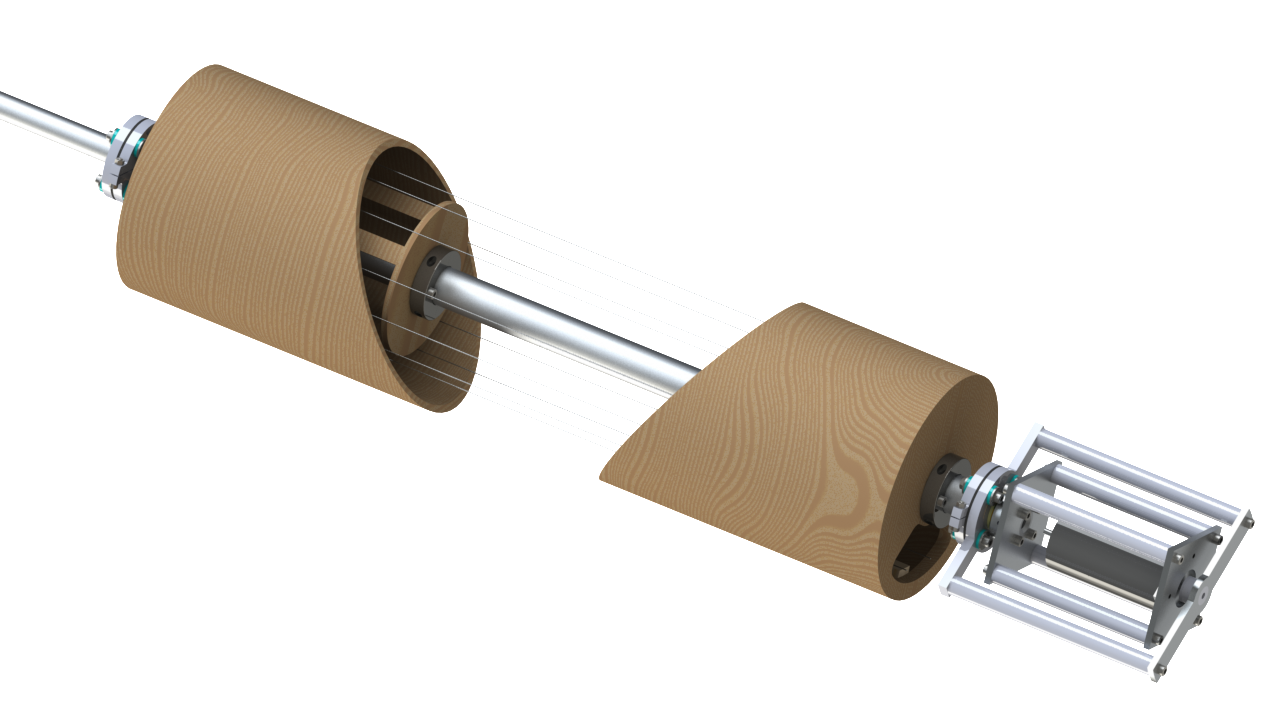

Harp CAD

Harp CAD








The Big Sprint




We had only about five weeks to build the new system and to make it work.

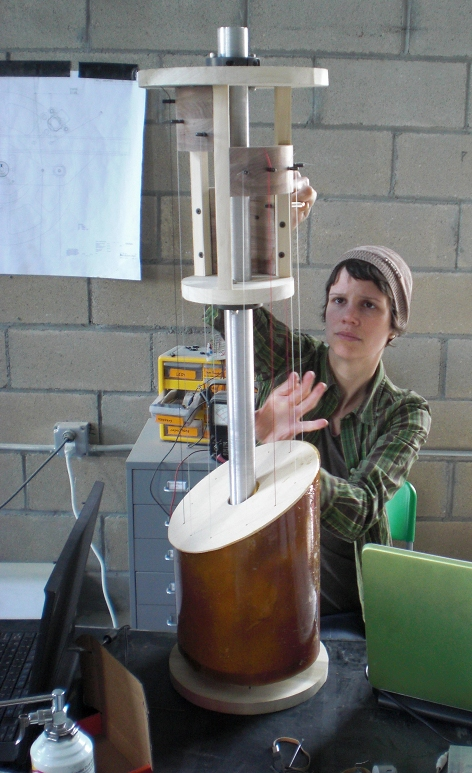

We raced around the clock. We slept in the workshop to save time. All while still experimenting. This video shows a fiberglass harp prototype and our first controlled motion tests.

Harp Prototype



Harp Prototype

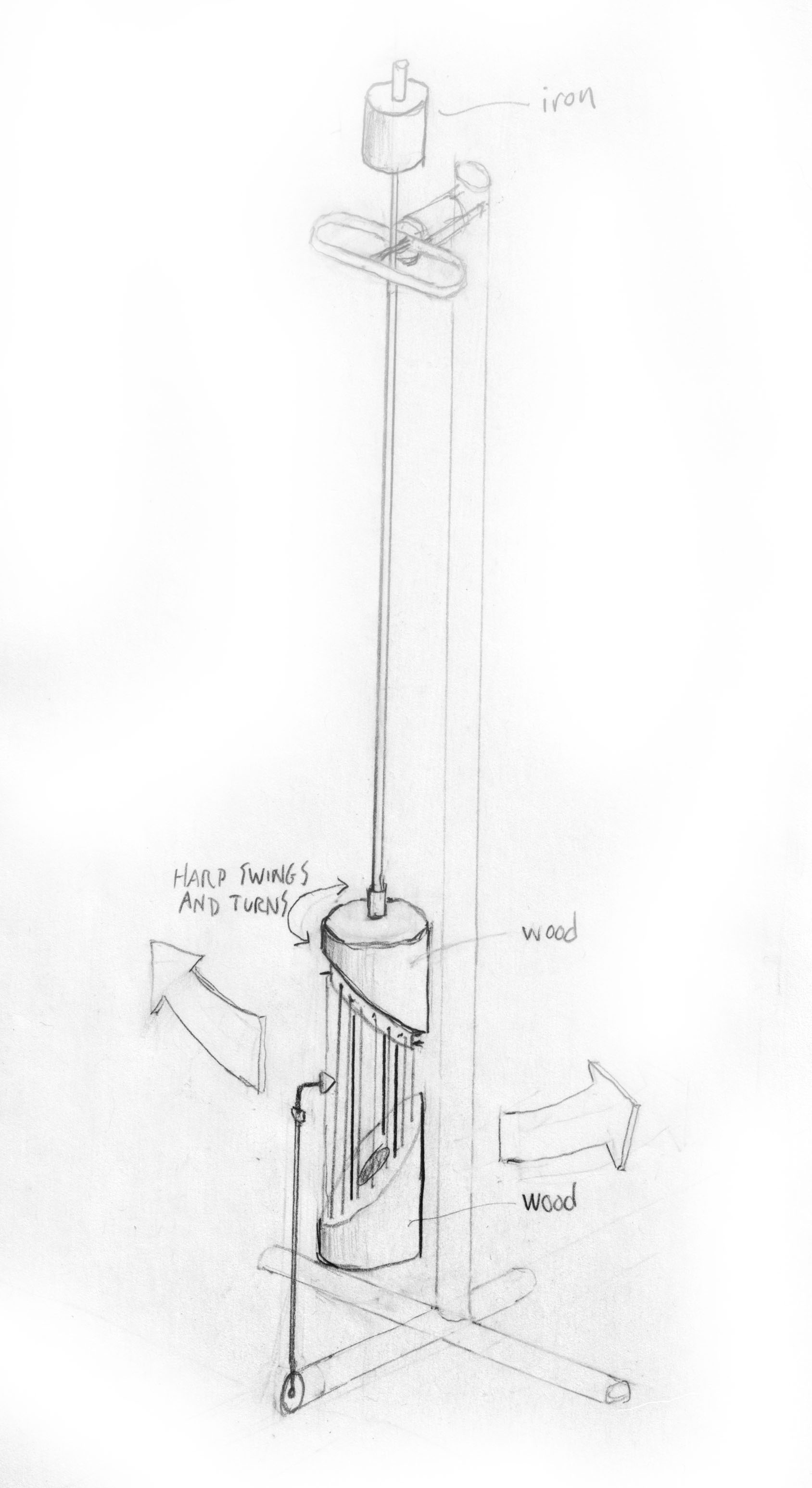

Concept sketch


Concept sketch

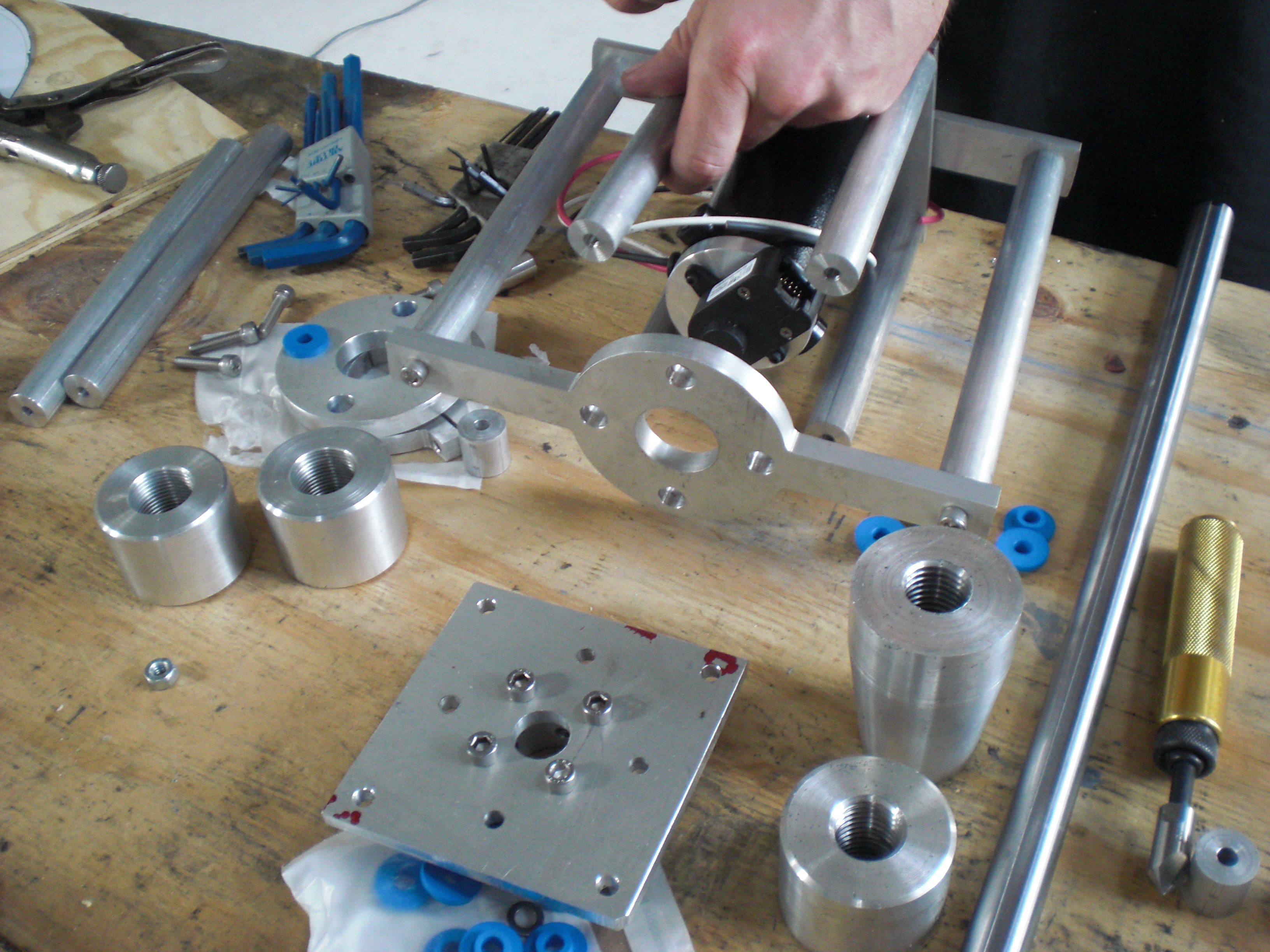

Custom Mechanisms



Custom Mechanisms
Custom Mechanisms



Custom Mechanisms

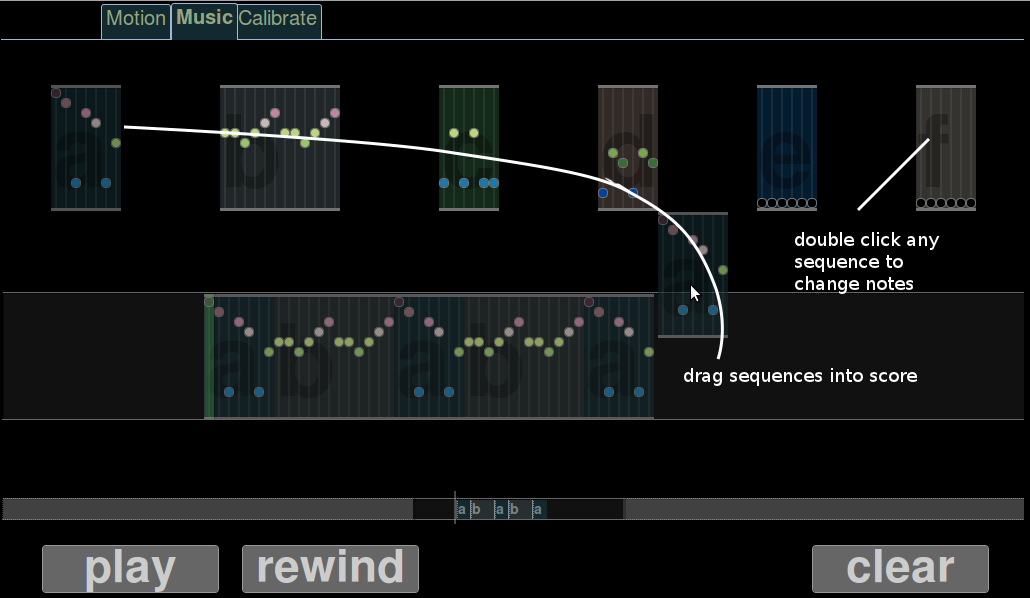

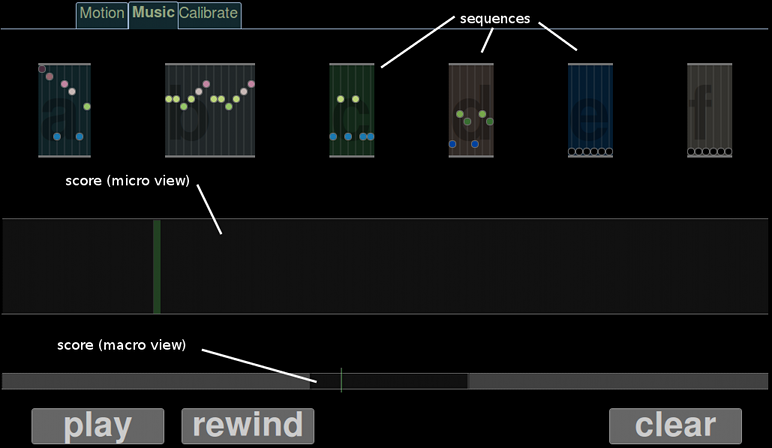

Custom Software

Every big project is an iceberg. Much of what makes it work isn't visible to the audience. The Gravity Harps have a suit for software for composing, improvising, performing, and calibrating.

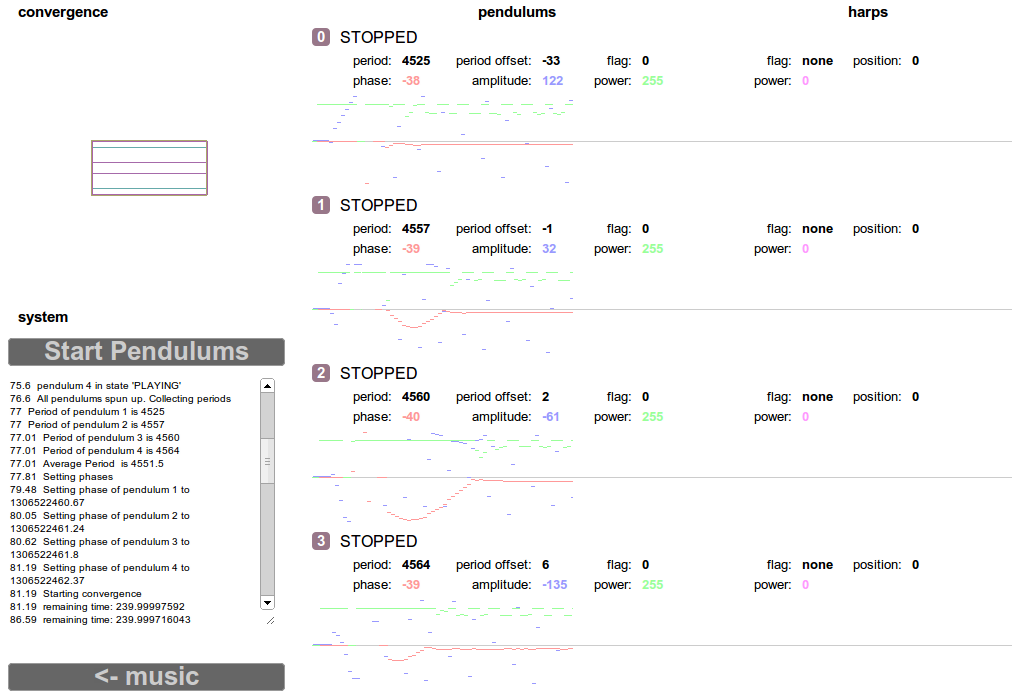

performance

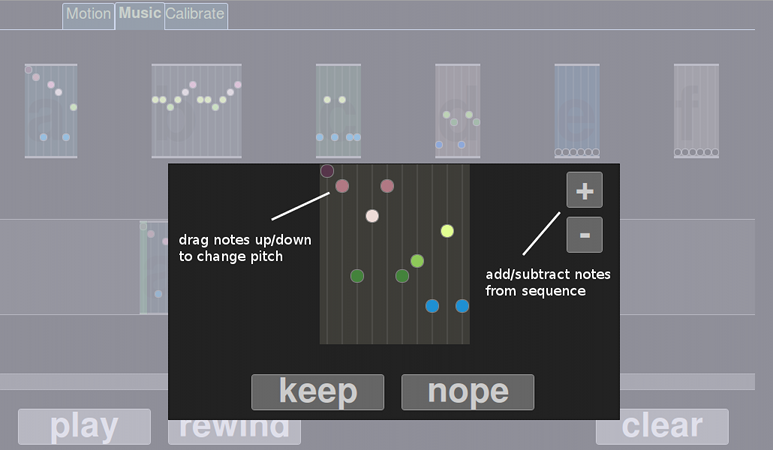

performance software
timing


timing software
composing


composing software
composing


composing software
composing


composing software








On Tour

Assembly




The assembly and calibration of the Gravity Harps is still an all-day affair. It is always fraught with unexpected troubles that need to be fixed before the clock runs out.

Here is a little peek at the process.
